10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

MOQ : 1,000

Price : 0.5

Nominal resistance : 5K,8K,10K,15K to 100K

Resistance tolerance : ±1%,±2%,±3%,±5%,±10%

Material coefficient : 2500~5000K

Dissipation coefficient : ≥0.8mw/ºC

Thermal time constant : 0.5S

Working temperature : -40ºC~+250ºC

Rated power : 50mw

Lead wire type : #24 30# 2651, UL4411 28#

Temperature range : -50 to 500ºC

Accuracy grade : A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)

Probe diameter : 3mm~16mm

Protection level : IP68

Lead wire options : Three core sliver tetrafluoride shielded wire, Silicone wire, Three core high temperature wire, Four fluorine wire

Switch type : Auto Reset or Manual Reset

Contact Now

NTC TEMPERATURE SENSOR

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	5K,8K,10K,15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1,±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85(material coefficient)(thermal-sensitivity index)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient)	≥0.8mw/ºC	Static in the air
T(thermal time constant)	≤25S	Static in the air
Ta(Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	within working temperature

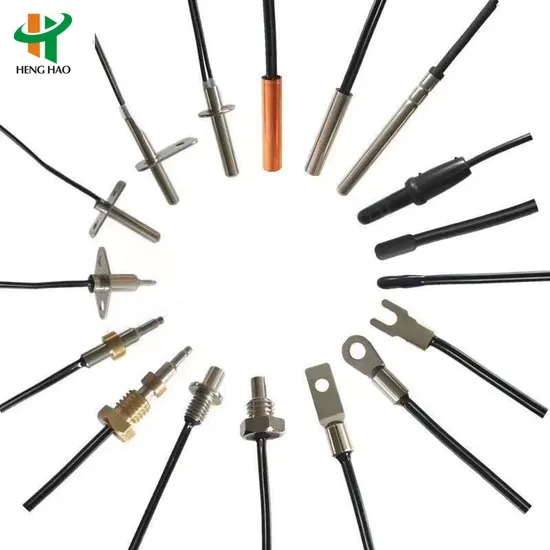

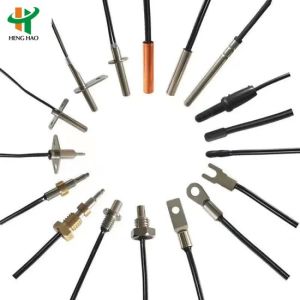

Case and head		Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire		#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal		Can be riveted according to the requirements of various terminals

Services

Your inquiry will be replied within 12 hours;
Well-trained and experienced staff are always at your service.
Unique design products and many private mold product are waiting for your choice.
Strictly protect your private information and your ideas of design.

FAQ

Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

PT100/PT500/PT1000 Temperature sensor

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50,PT1000,K,E,J,T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe	4*30mm, or according to client's request to design.
Thermal time constant	0.5S
Lead wire	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC)
Dia	3mm~16mm
terminal	Y type, Pin,XH2.54 or according to client's request.
Level of protection	IP68
